HANDLEBARS
EAS22850
HANDLEBARS

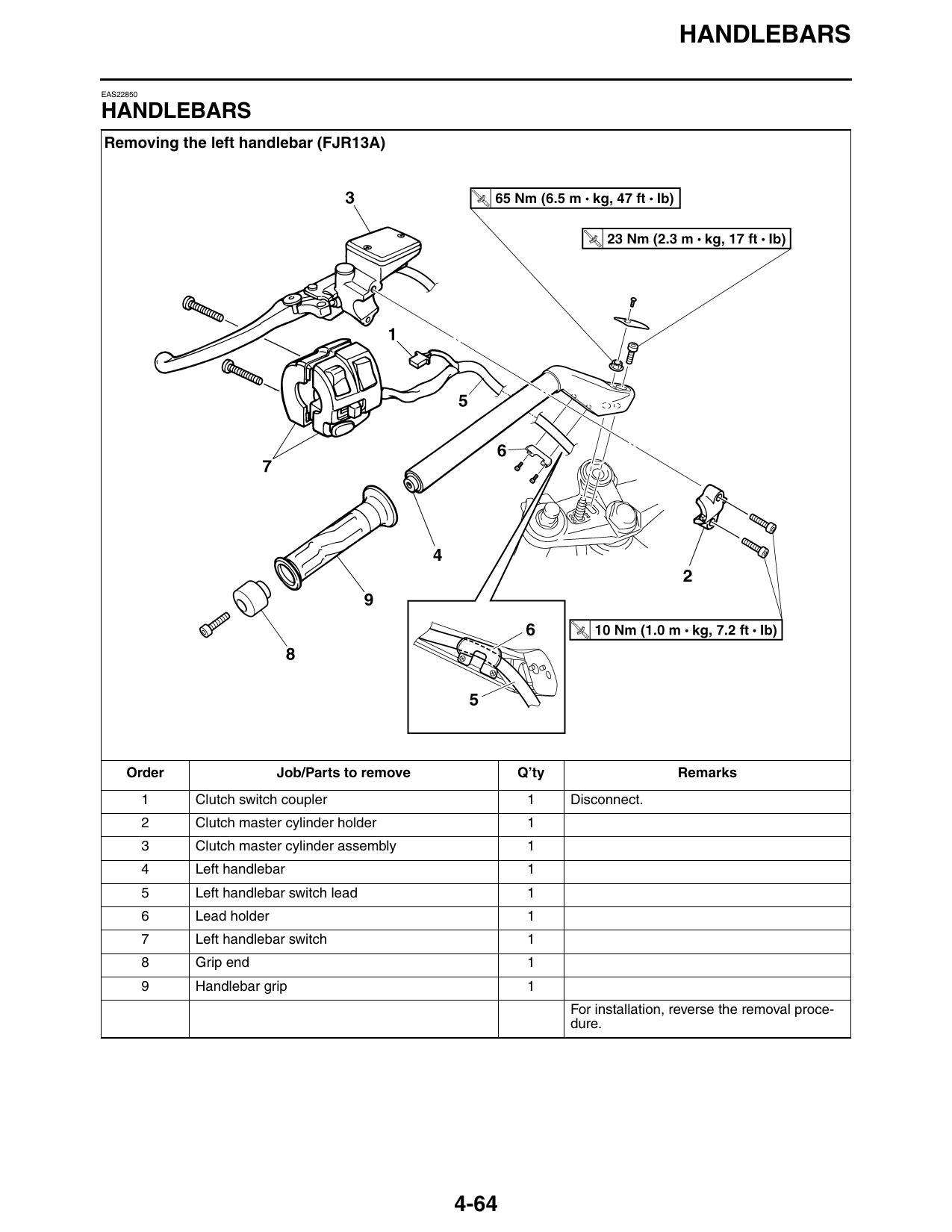

Removing the left handlebar (FJR13A)
Order Job/Parts to remove Q’ty Remarks
1 Clutch switch coupler 1 Disconnect.
2 Clutch master cylinder holder 1
3 Clutch master cylinder assembly 1
4 Left handlebar 1
5 Left handlebar switch lead 1
6 Lead holder 1
7 Left handlebar switch 1
8 Grip end 1
9 Handlebar grip 1
For installation, reverse the removal proce-
dure.
4-64
HANDLEBARS

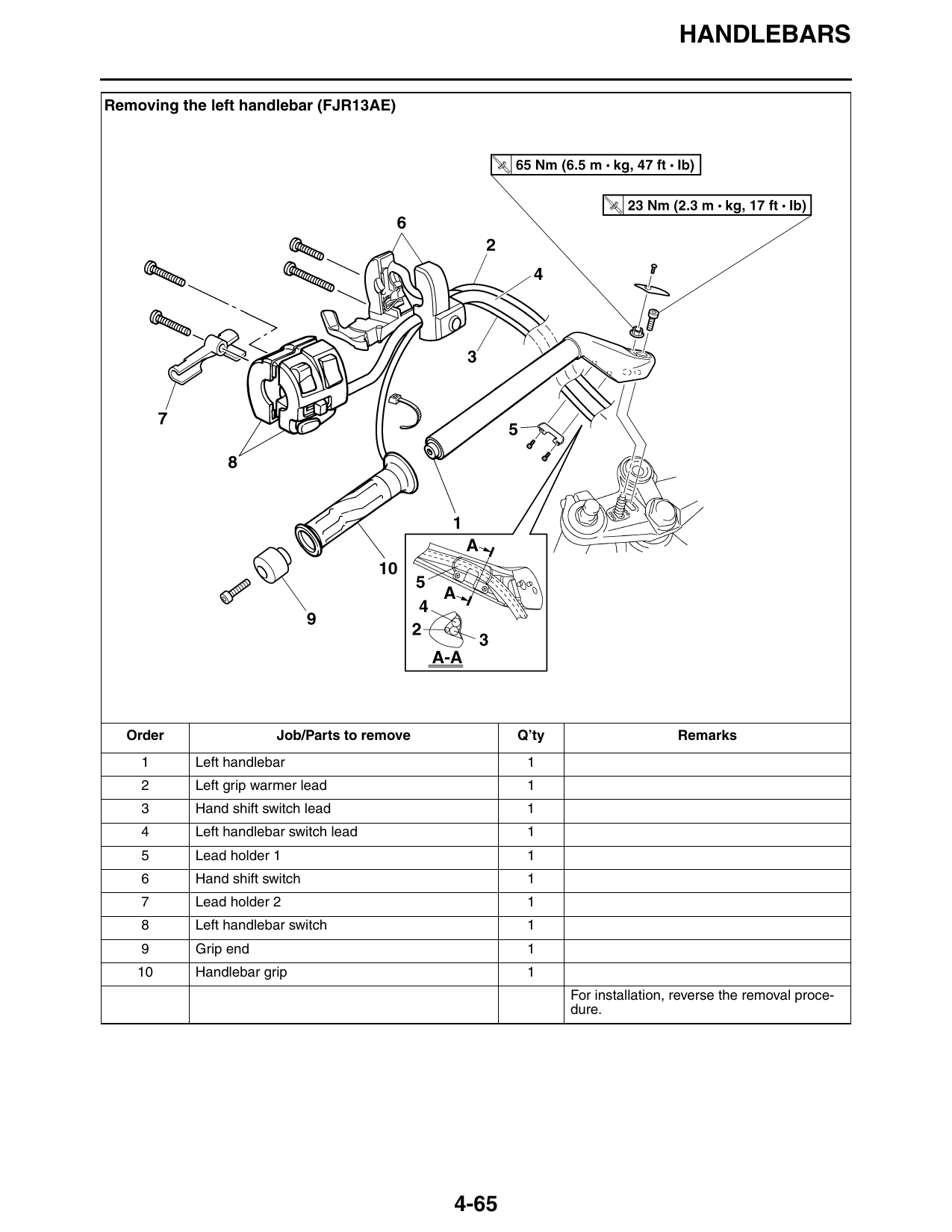

Removing the left handlebar (FJR13AE)
Order Job/Parts to remove Q’ty Remarks
1 Left handlebar 1
2 Left grip warmer lead 1
3 Hand shift switch lead 1
4 Left handlebar switch lead 1
5 Lead holder 1 1
6 Hand shift switch 1
7 Lead holder 2 1
8 Left handlebar switch 1
9 Grip end 1
10 Handlebar grip 1
For installation, reverse the removal proce-
dure.
4-65
HANDLEBARS

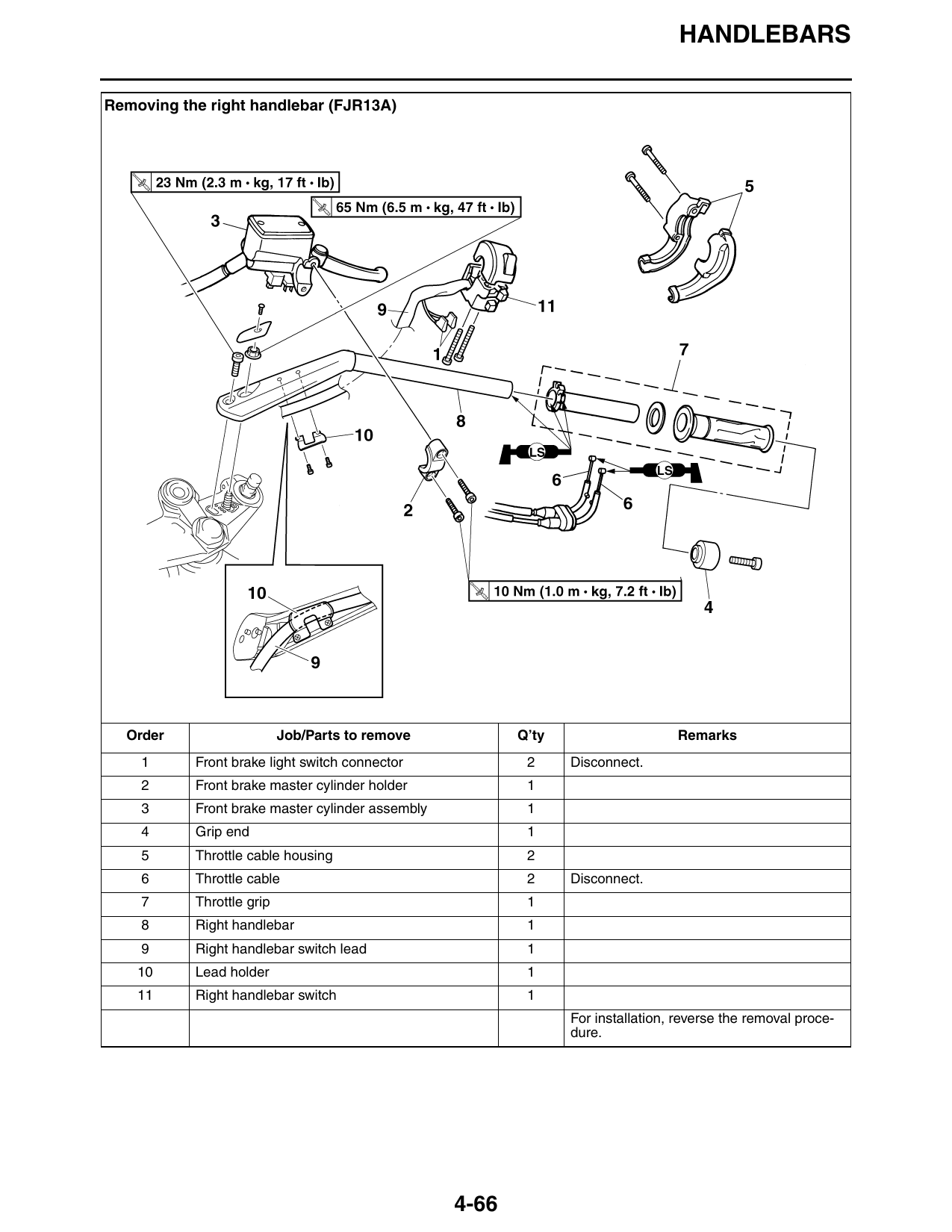

Removing the right handlebar (FJR13A)
Order Job/Parts to remove Q’ty Remarks
1 Front brake light switch connector 2 Disconnect.
2 Front brake master cylinder holder 1
3 Front brake master cylinder assembly 1
4 Grip end 1
5 Throttle cable housing 2
6 Throttle cable 2 Disconnect.
7 Throttle grip 1
8 Right handlebar 1
9 Right handlebar switch lead 1
10 Lead holder 1
11 Right handlebar switch 1
For installation, reverse the removal proce-
dure.
4-66
HANDLEBARS

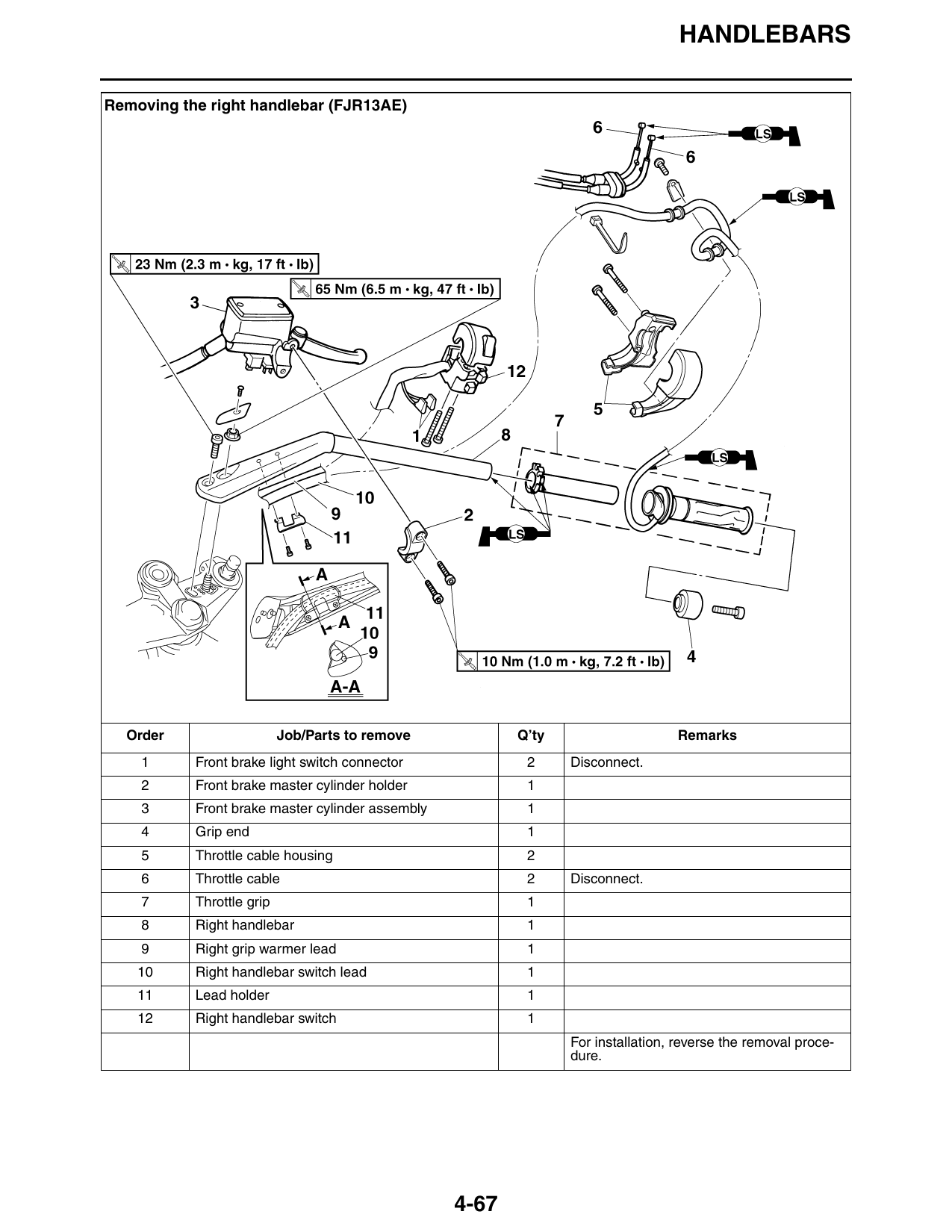

Removing the right handlebar (FJR13AE)
Order Job/Parts to remove Q’ty Remarks
1 Front brake light switch connector 2 Disconnect.
2 Front brake master cylinder holder 1
3 Front brake master cylinder assembly 1
4 Grip end 1
5 Throttle cable housing 2
6 Throttle cable 2 Disconnect.
7 Throttle grip 1
8 Right handlebar 1
9 Right grip warmer lead 1
10 Right handlebar switch lead 1
11 Lead holder 1
12 Right handlebar switch 1
For installation, reverse the removal proce-
dure.
4-67
