STEERING HEAD

EAS23090

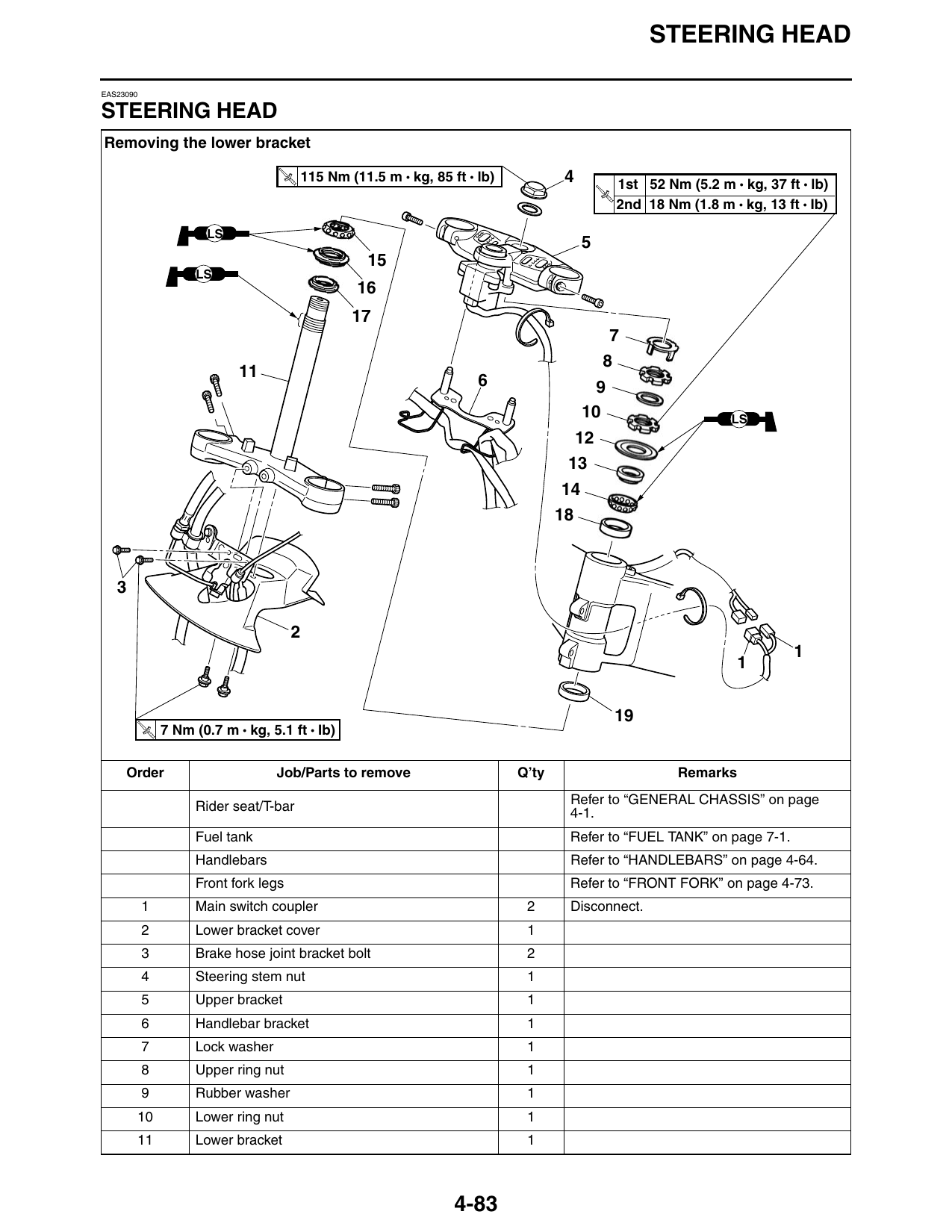

STEERING HEAD
Removing the lower bracket

                                           T.
                                            R.
                                                 115 Nm (11.5 m • kg, 85 ft • lb)           4              1st 52 Nm (5.2 m • kg, 37 ft • lb)
                                                                                                     T.

                                                                                                           2nd 18 Nm (1.8 m • kg, 13 ft • Ib)
                                                                                                      R.

                           LS
                          LS
                                                                              6                  9
                                                                                                10                           LS

           T.
               R.
                    7 Nm (0.7 m • kg, 5.1 ft • Ib)

     Order                             Job/Parts to remove                          Q’ty                            Remarks
                                                                                            Refer to “GENERAL CHASSIS” on page
                         Rider seat/T-bar                                                   4-1.
                         Fuel tank                                                          Refer to “FUEL TANK” on page 7-1.
                         Handlebars                                                         Refer to “HANDLEBARS” on page 4-64.
                         Front fork legs                                                    Refer to “FRONT FORK” on page 4-73.
           1             Main switch coupler                                         2      Disconnect.
           2             Lower bracket cover                                         1
           3             Brake hose joint bracket bolt                               2
           4             Steering stem nut                                           1
           5             Upper bracket                                               1
           6             Handlebar bracket                                           1
           7             Lock washer                                                 1
           8             Upper ring nut                                              1
           9             Rubber washer                                               1
       10                Lower ring nut                                              1
       11                Lower bracket                                               1

                                                                          4-83

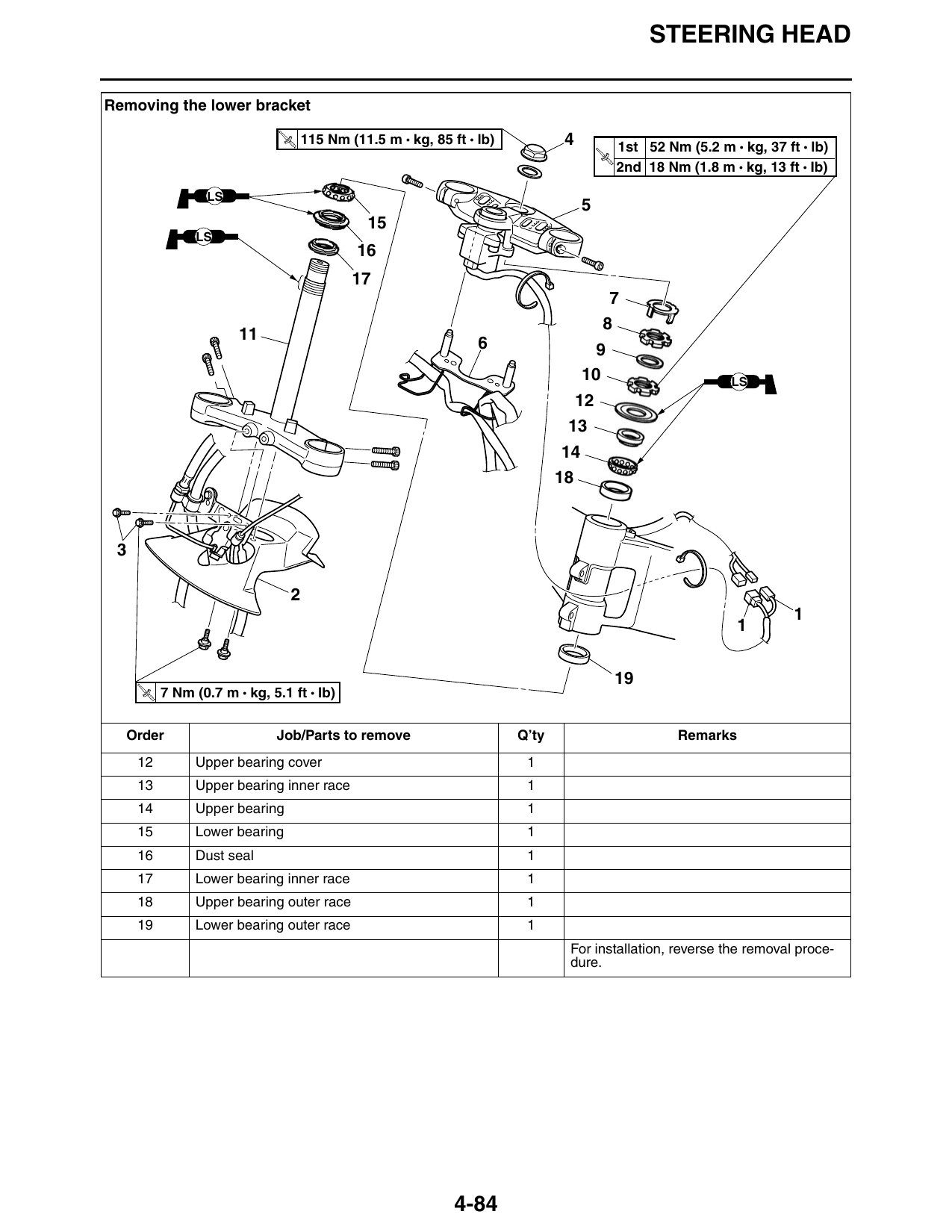

                                                                                                       STEERING HEAD

Removing the lower bracket

                                  T.
                                   R.
                                        115 Nm (11.5 m • kg, 85 ft • lb)           4              1st 52 Nm (5.2 m • kg, 37 ft • lb)
                                                                                            T.

                                                                                                  2nd 18 Nm (1.8 m • kg, 13 ft • Ib)
                                                                                             R.

                   LS
                  LS
                                                                     6                  9
                                                                                       10                           LS

      T.
       R.
            7 Nm (0.7 m • kg, 5.1 ft • Ib)

  Order                        Job/Parts to remove                         Q’ty                            Remarks
     12          Upper bearing cover                                        1
     13          Upper bearing inner race                                   1
     14          Upper bearing                                              1
     15          Lower bearing                                              1
     16          Dust seal                                                  1
     17          Lower bearing inner race                                   1
     18          Upper bearing outer race                                   1
     19          Lower bearing outer race                                   1
                                                                                   For installation, reverse the removal proce-
                                                                                   dure.
