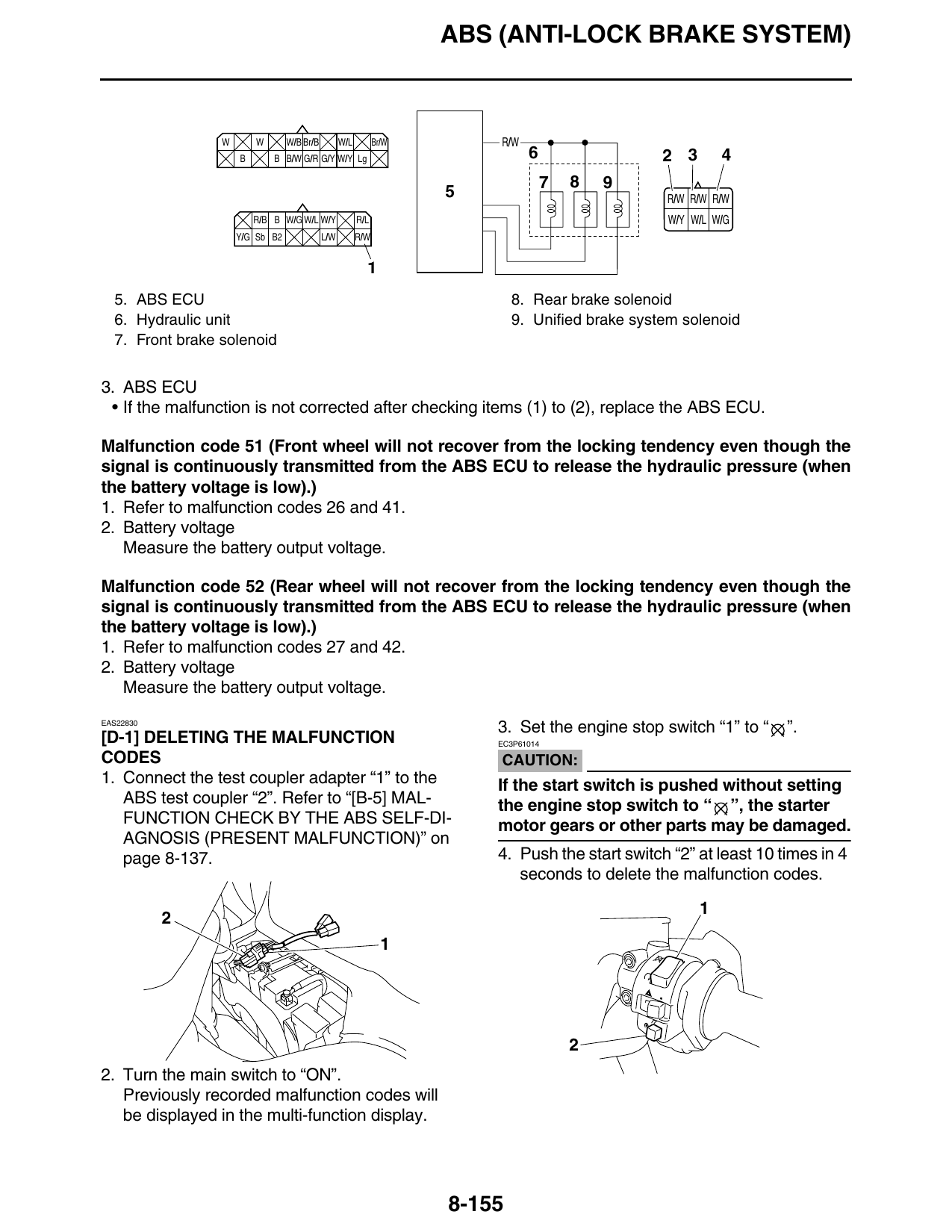

[D-1] Deleting The Malfunction Codes

ABS (ANTI-LOCK BRAKE SYSTEM)

                 W       W       W/B Br/B         W/L         Br/W       R/W
                     B       B B/W G/R G/Y W/Y Lg                              6                  2 3       4
                                                                                   7   8   9
                                                                     5                            R/W R/W R/W
                         R/B B W/G W/L W/Y              R/L                                       W/Y W/L W/G
                     Y/G Sb B2              L/W         R/W

  5. ABS ECU                                                                 8. Rear brake solenoid
  6. Hydraulic unit                                                          9. Unified brake system solenoid
  7. Front brake solenoid

3. ABS ECU
 • If the malfunction is not corrected after checking items (1) to (2), replace the ABS ECU.

Malfunction code 51 (Front wheel will not recover from the locking tendency even though the
signal is continuously transmitted from the ABS ECU to release the hydraulic pressure (when
the battery voltage is low).)
1. Refer to malfunction codes 26 and 41.
2. Battery voltage
   Measure the battery output voltage.

Malfunction code 52 (Rear wheel will not recover from the locking tendency even though the
signal is continuously transmitted from the ABS ECU to release the hydraulic pressure (when
the battery voltage is low).)
1. Refer to malfunction codes 27 and 42.
2. Battery voltage
   Measure the battery output voltage.
EAS22830
                                                                         3. Set the engine stop switch “1” to “    ”.
[D-1] DELETING THE MALFUNCTION                                           EC3P61014

CODES                                                                    CAUTION:
1. Connect the test coupler adapter “1” to the                           If the start switch is pushed without setting
   ABS test coupler “2”. Refer to “[B-5] MAL-                            the engine stop switch to “ ”, the starter
   FUNCTION CHECK BY THE ABS SELF-DI-                                    motor gears or other parts may be damaged.
   AGNOSIS (PRESENT MALFUNCTION)” on
   page 8-137.                                                           4. Push the start switch “2” at least 10 times in 4
                                                                            seconds to delete the malfunction codes.

2. Turn the main switch to “ON”.
   Previously recorded malfunction codes will
   be displayed in the multi-function display.

                                                                     8-155
