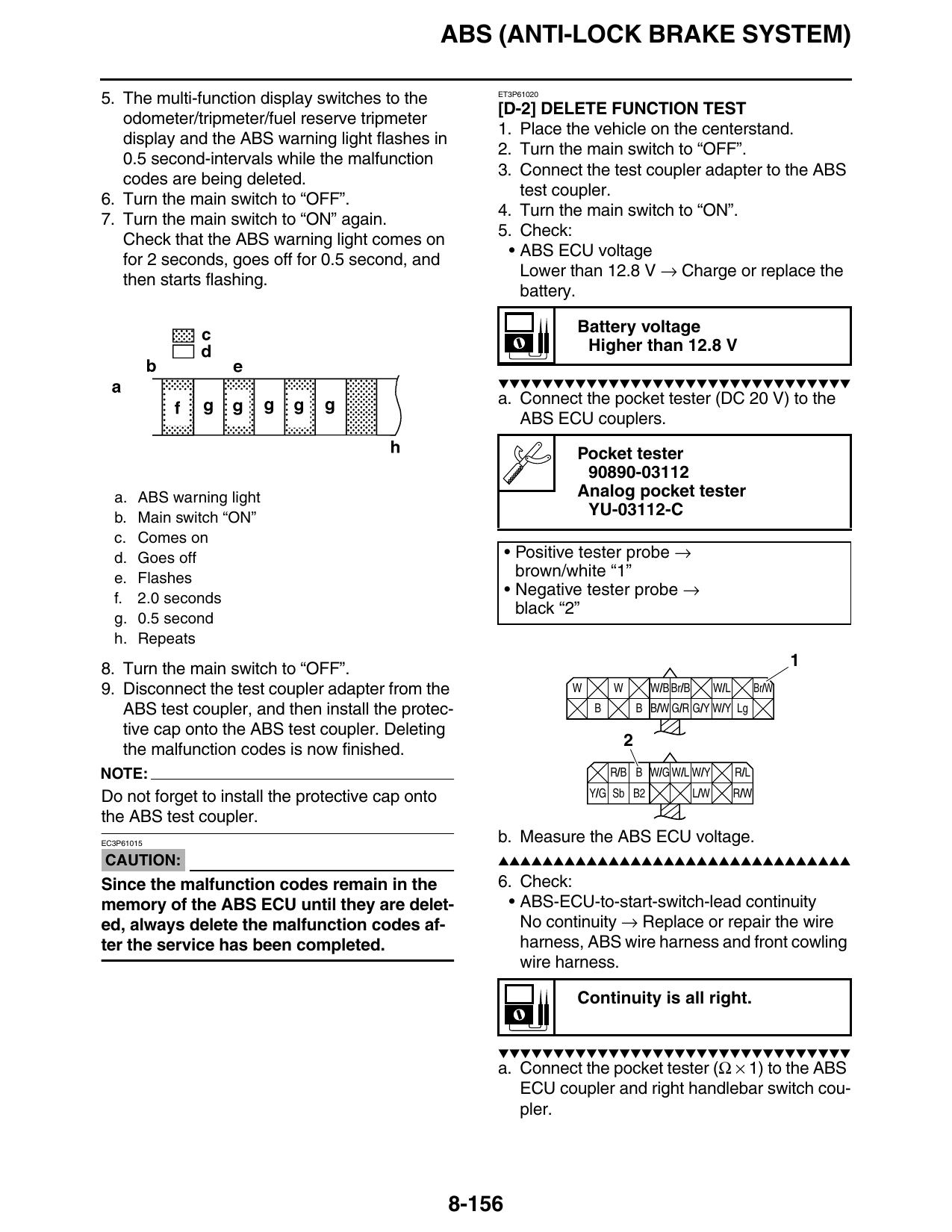

[D-2] Delete Function Test

ABS (ANTI-LOCK BRAKE SYSTEM)

5. The multi-function display switches to the          ET3P61020

                                                       [D-2] DELETE FUNCTION TEST
   odometer/tripmeter/fuel reserve tripmeter
                                                       1. Place the vehicle on the centerstand.
   display and the ABS warning light flashes in
                                                       2. Turn the main switch to “OFF”.
   0.5 second-intervals while the malfunction
                                                       3. Connect the test coupler adapter to the ABS
   codes are being deleted.
                                                          test coupler.
6. Turn the main switch to “OFF”.
                                                       4. Turn the main switch to “ON”.
7. Turn the main switch to “ON” again.
                                                       5. Check:
   Check that the ABS warning light comes on
                                                        • ABS ECU voltage
   for 2 seconds, goes off for 0.5 second, and
                                                          Lower than 12.8 V → Charge or replace the
   then starts flashing.
                                                          battery.

                                                                    Battery voltage
                                                                     Higher than 12.8 V

                                                       ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
                                                       a. Connect the pocket tester (DC 20 V) to the
                                                          ABS ECU couplers.

                                                                    Pocket tester
                                                                     90890-03112
  a. ABS warning light                                              Analog pocket tester
  b. Main switch “ON”                                                YU-03112-C
  c. Comes on
  d. Goes off                                              • Positive tester probe →
  e. Flashes                                                 brown/white “1”
  f. 2.0 seconds
                                                           • Negative tester probe →
                                                             black “2”
  g. 0.5 second
  h. Repeats
8. Turn the main switch to “OFF”.
9. Disconnect the test coupler adapter from the                    W       W         W/B Br/B         W/L         Br/W
   ABS test coupler, and then install the protec-                      B           B B/W G/R G/Y W/Y Lg
   tive cap onto the ABS test coupler. Deleting
   the malfunction codes is now finished.
NOTE:                                                                      R/B B W/G W/L W/Y                R/L

Do not forget to install the protective cap onto                       Y/G Sb B2                L/W         R/W
the ABS test coupler.
EC3P61015                                              b. Measure the ABS ECU voltage.
CAUTION:                                               ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Since the malfunction codes remain in the              6. Check:
memory of the ABS ECU until they are delet-             • ABS-ECU-to-start-switch-lead continuity
ed, always delete the malfunction codes af-               No continuity → Replace or repair the wire
ter the service has been completed.                       harness, ABS wire harness and front cowling
                                                          wire harness.

                                                                    Continuity is all right.

                                                       ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
                                                       a. Connect the pocket tester (Ω × 1) to the ABS
                                                          ECU coupler and right handlebar switch cou-
                                                          pler.

                                                   8-156
